尺寸:
5 x 20mm, 6 x 25mm 6 x 32mm 10 x 35mm 10 x 38mm
電壓：1000Vdc/750Vdc/500Vdc/300Vdc/250Vdc/75Vdc
電流：0.25-50A
分斷能力: 高分斷
應用：
5G通信；鋰電池；儀器儀表；分布式儲能；轉(zhuǎn)換器；逆變器；DC電源。
| Part No. | Size | Voltage Rating | Current Rating | Breaking Capacity | Characterstic | Agency Approval |

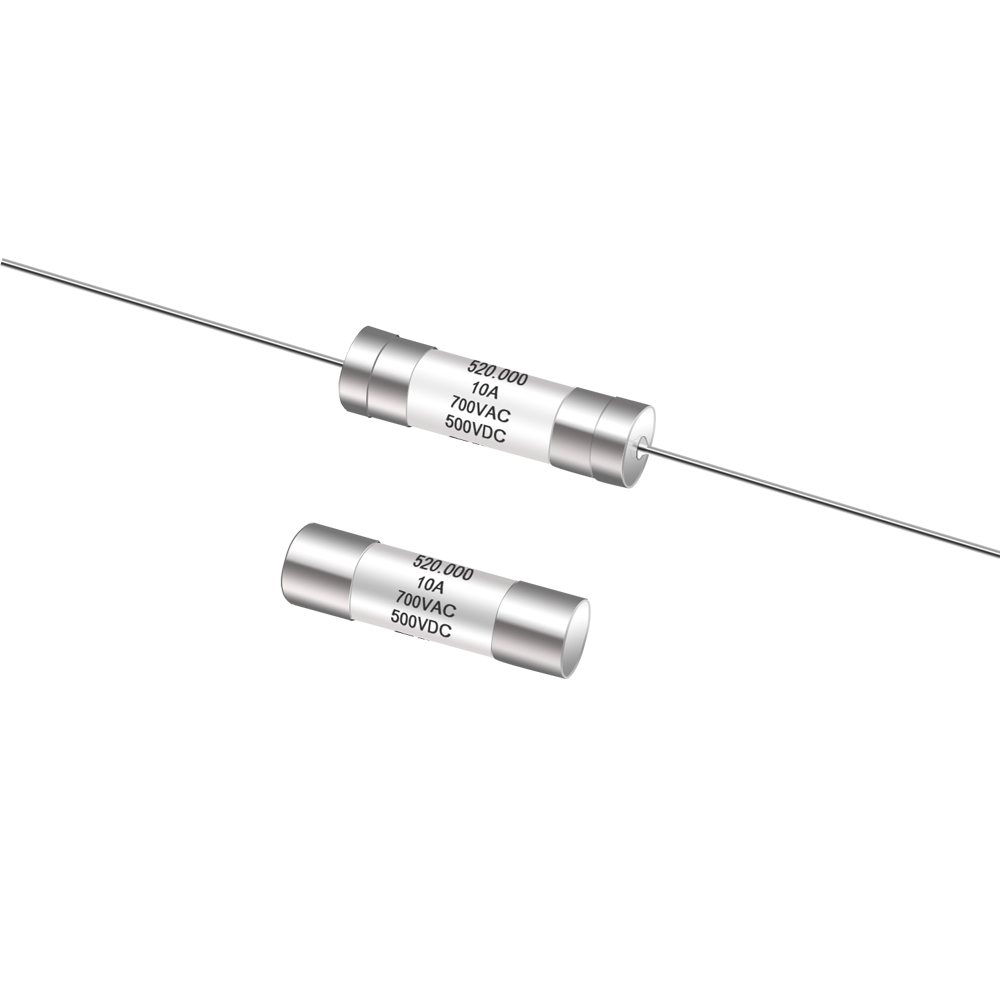

| 520.000 | 5x 20 mm | 700Vac/500Vdc | 0.2-20A | 500A | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |
| 520.300 | 5x 20 mm | 0.2-30A | 300Vac/dc | 5kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |
| 520.500 | 5x 20 mm | 0.2-20A | 500Vac/dc | 5kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

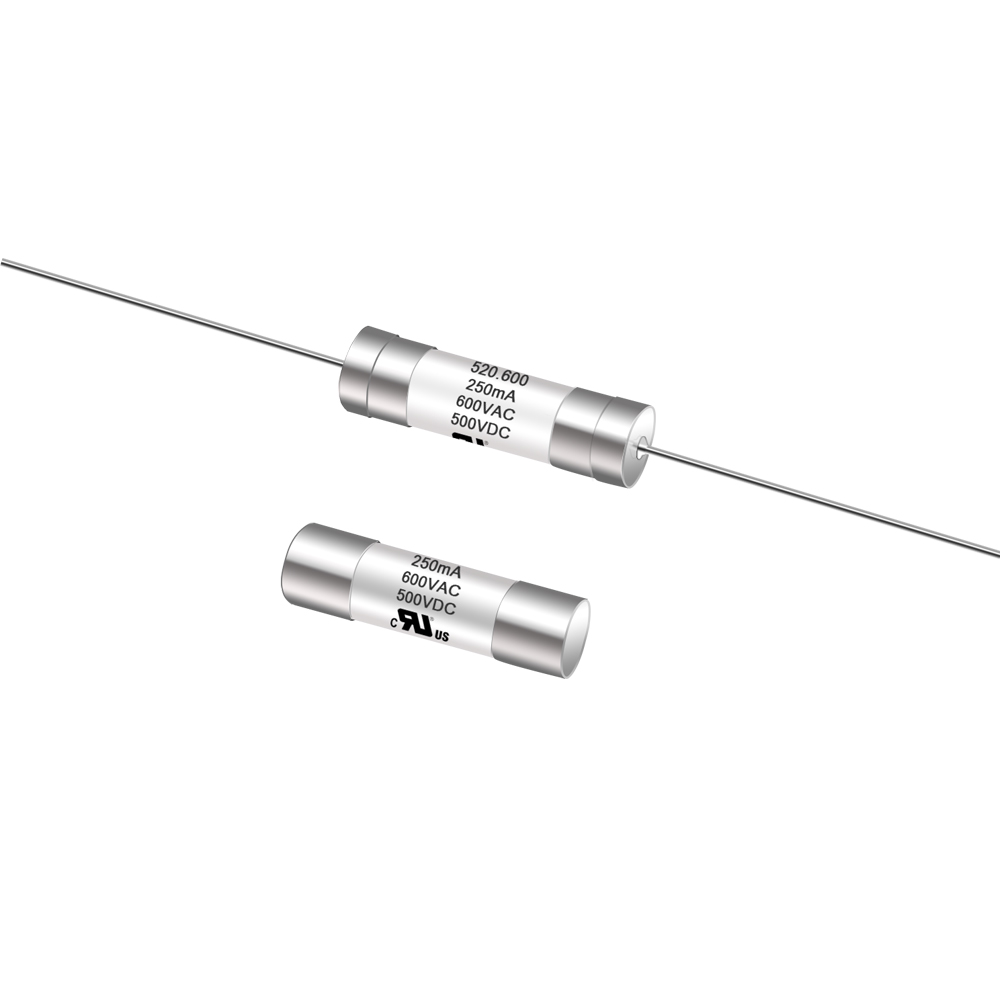

| 520.600 | 5x 20 mm | 0.2-12A | 500Vdc | 5kA | Fast Acting | UL |
| 520.600 | 5x 20 mm | 15-20A | 500Vdc | 500A | Fast Acting | UL |
| 520.600 | 5x 20 mm | 0.2-20A | 600Vac | 500A | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

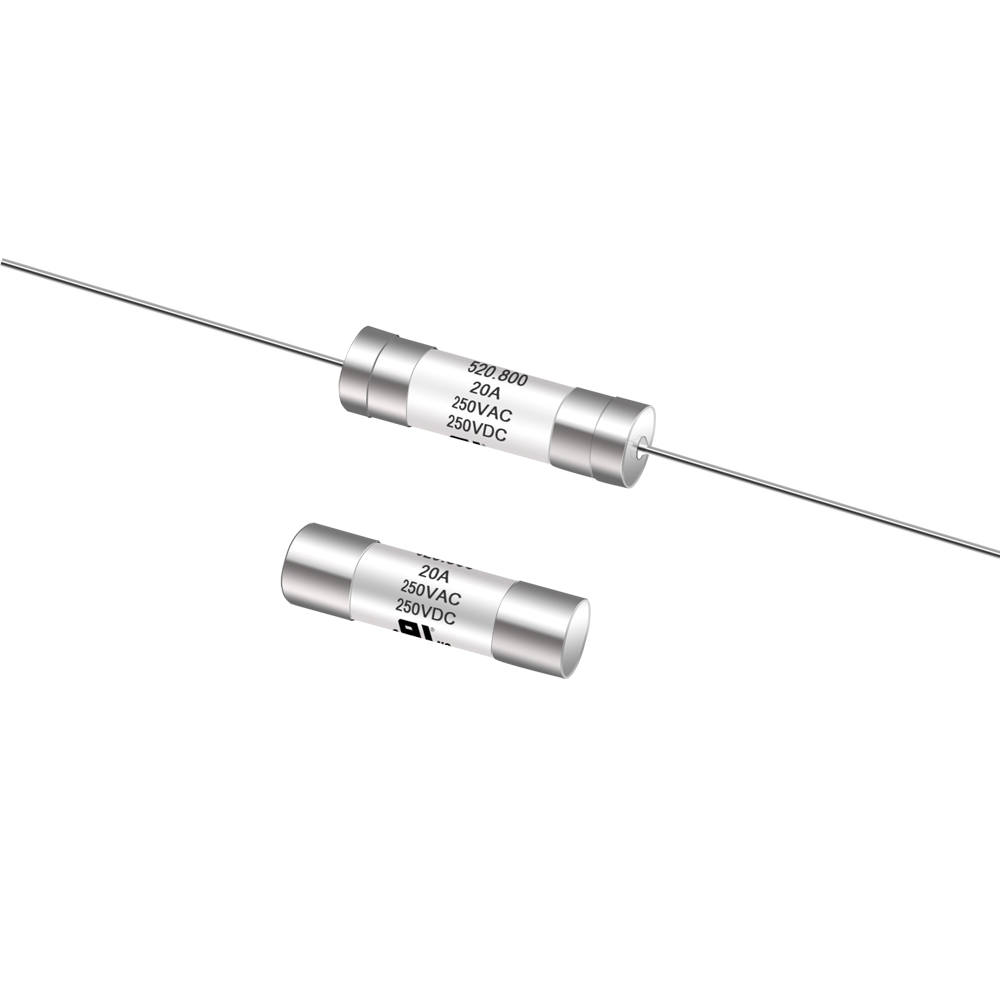

| 520.800 | 5x 20 mm | 0.2-30A | 250Vac/dc | 300A | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

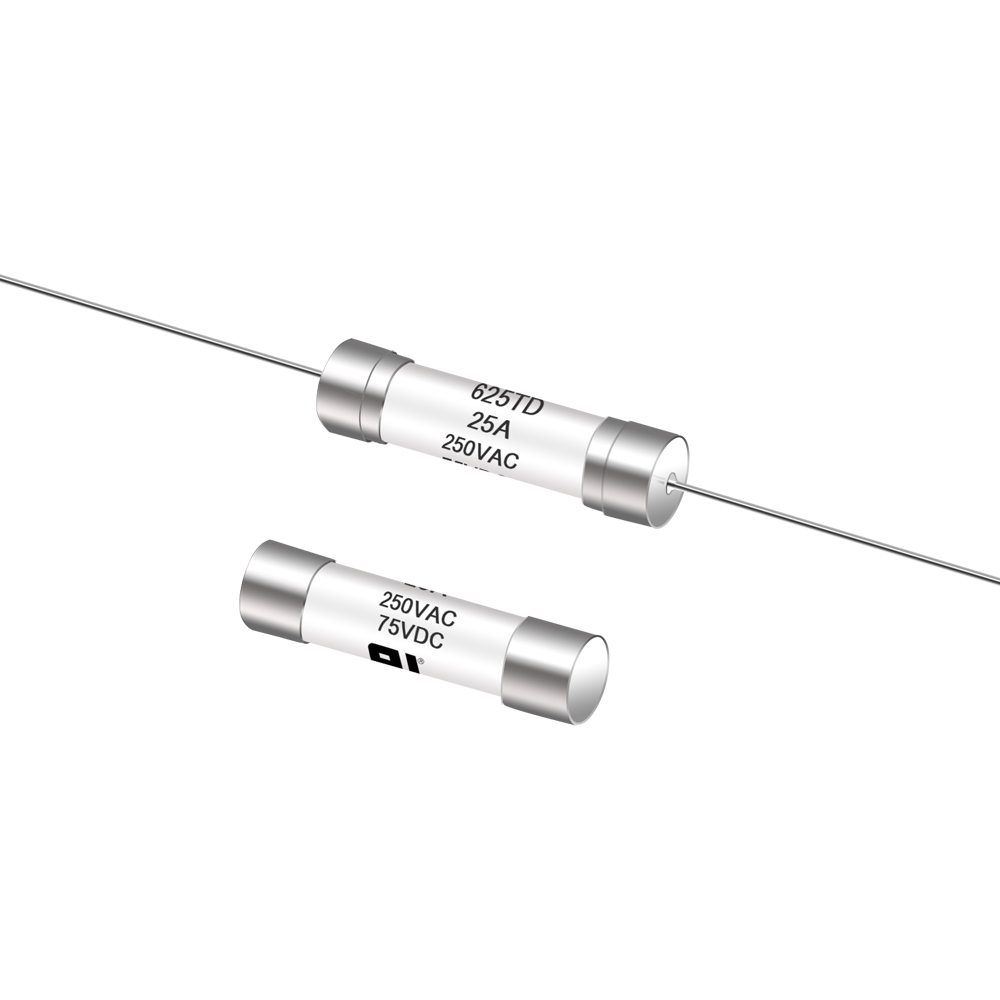

| 625TD | 6 x 25 mm | 5-50A | 250Vac/75Vdc | 2500A | 抗浪涌 防雷擊 | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |
| 632.000 | 6 x 32 mm | 0.2-12A | 1000Vac/dc | 10kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |
| 632.700 | 6 x 32 mm | 0.2-30A | 750Vac/dc | 10kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

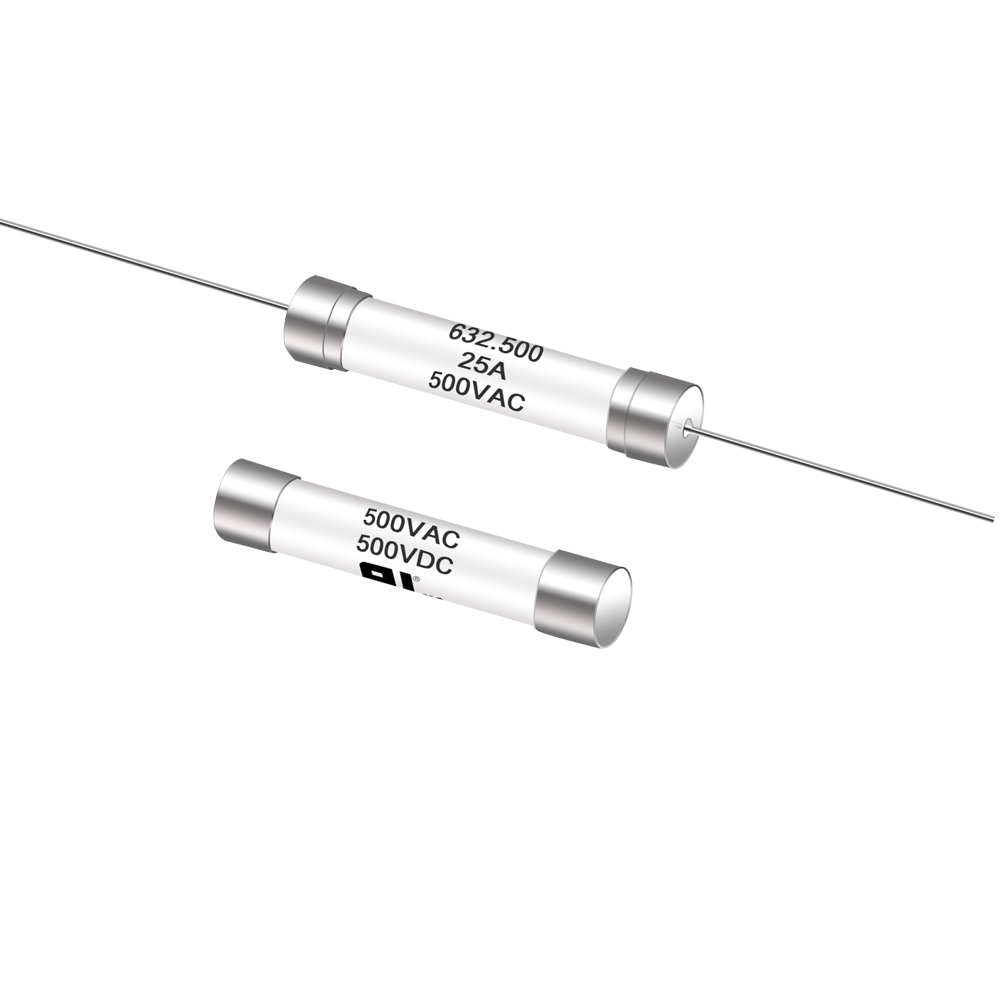

| 632.500 | 6 x 32 mm | 0.2-30A | 500Vac/dc | 10kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

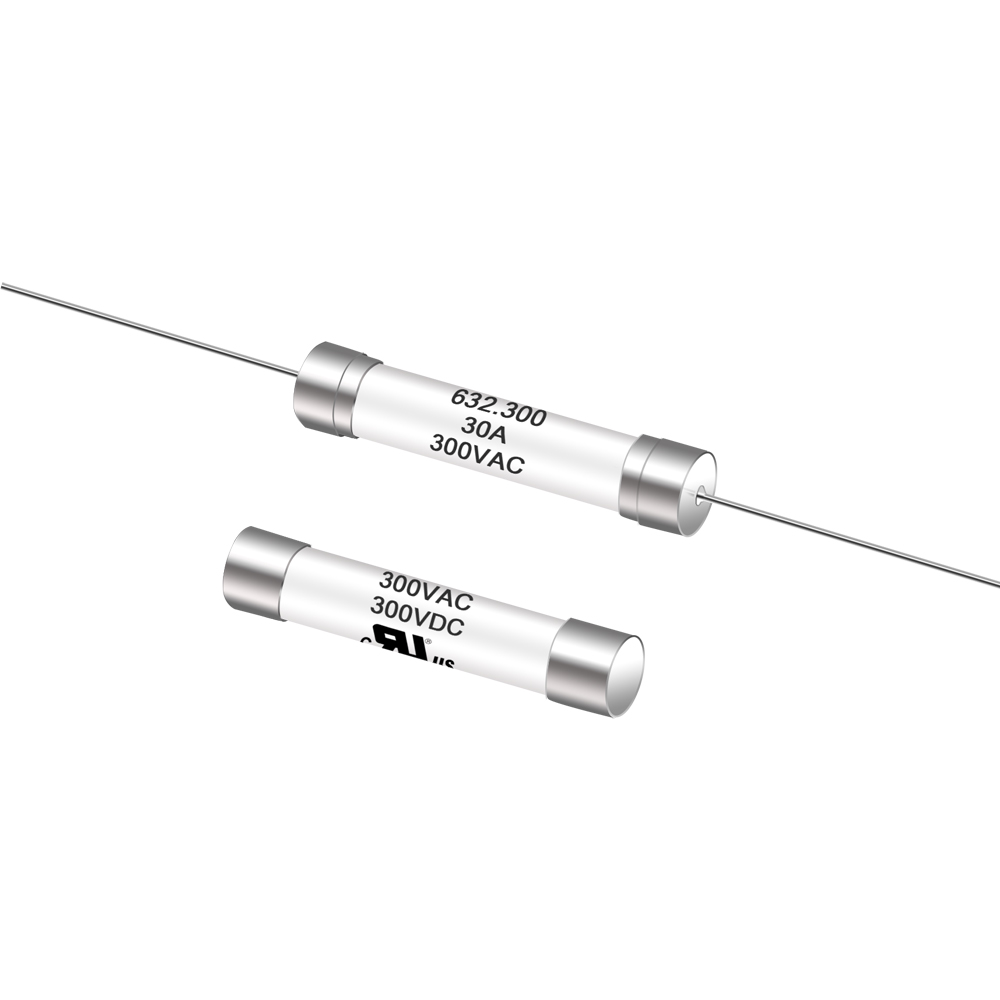

| 632.300 | 6 x 32 mm | 0.2-30A | 300Vac/dc | 10kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

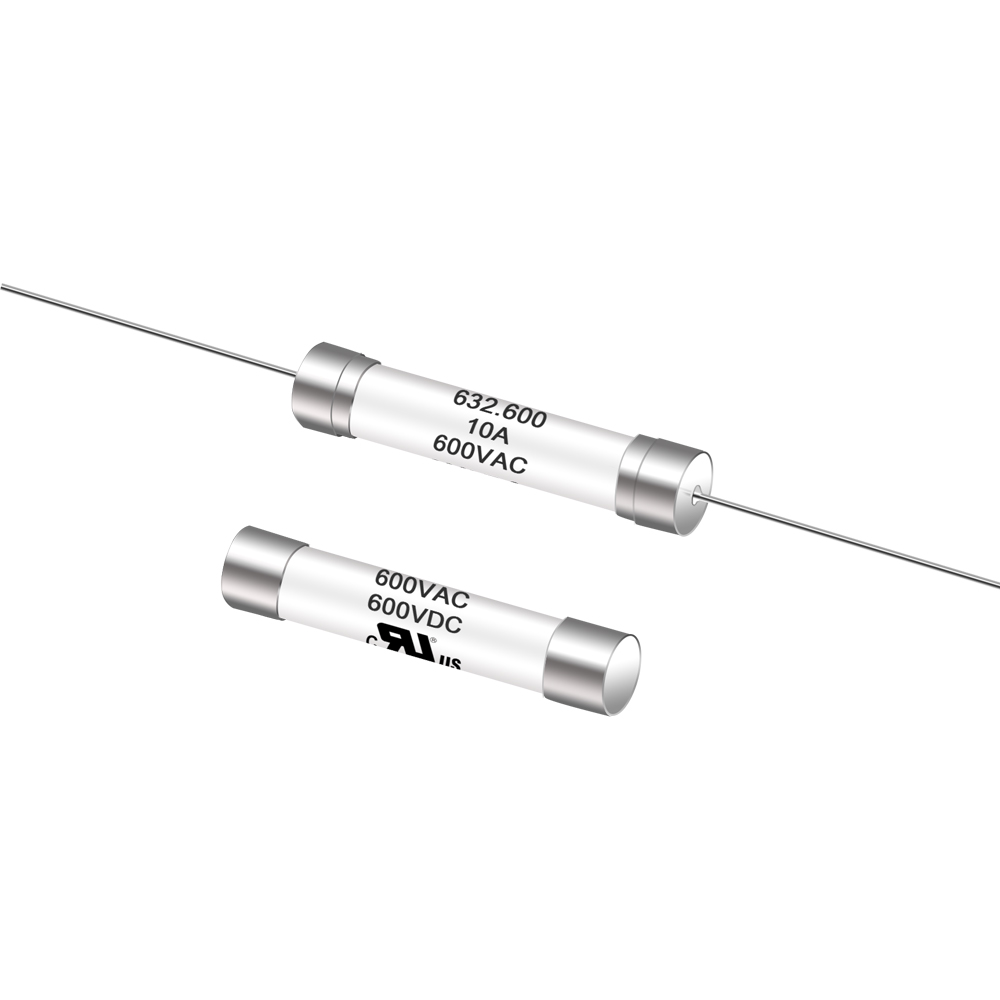

| 632.600 | 6 x 32 mm | 0.2-30A | 600Vac/dc | 10kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

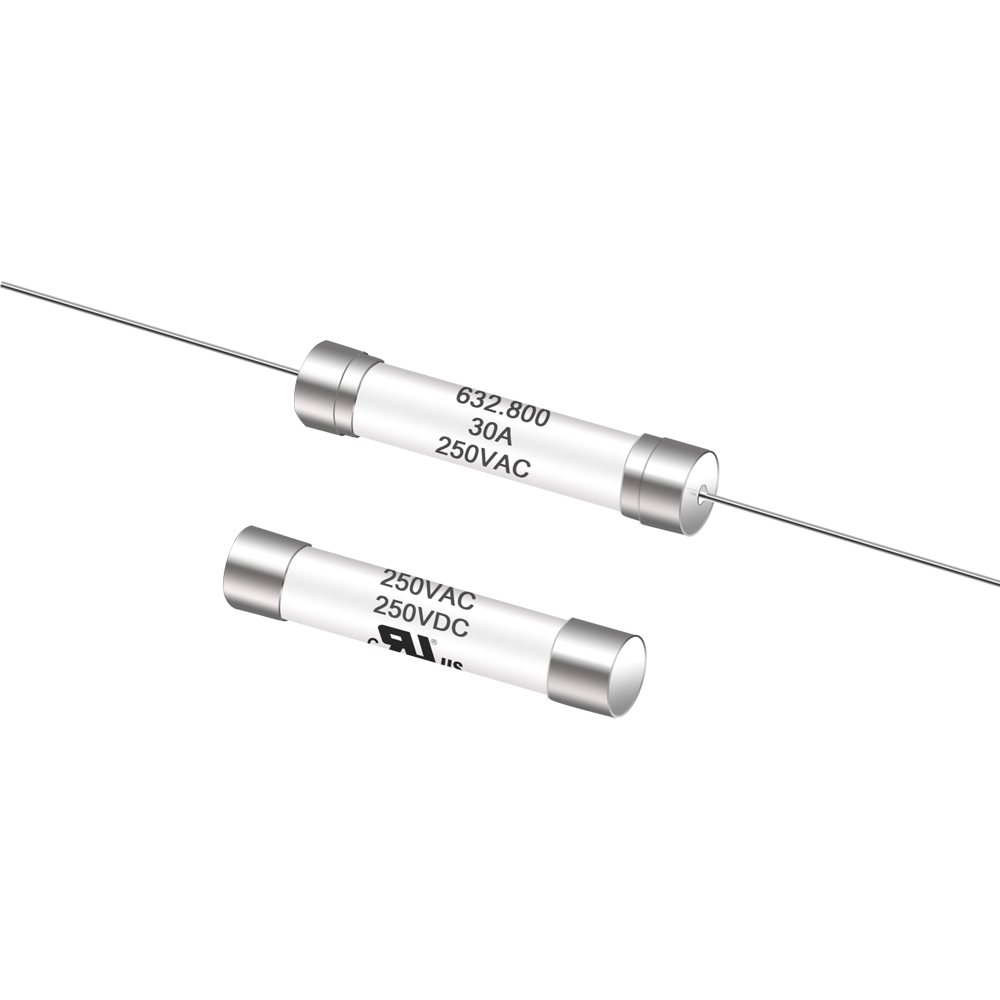

| 632.800 | 6 x 32 mm | 0.2-50A | 250Vac/dc | 1kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

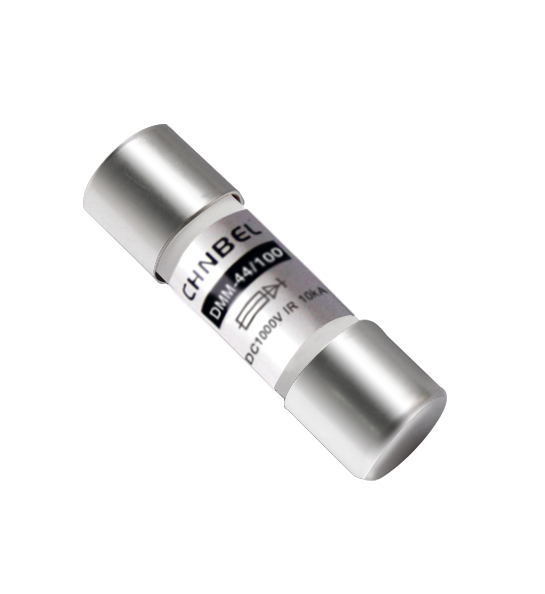

| DMM | 10 x 35 mm | 400mA/600mA/800mA | 1000Vdc | 10kA | Fast Acting | UL |
| Part No. | Size | Current Rating | Voltage Rating | Breaking Capacity | Characterstic | Agency Approval |

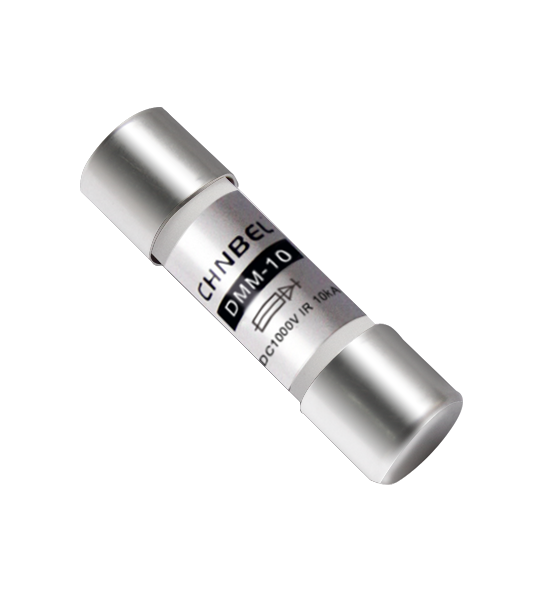

| DMM | 10 x 38 mm | 10-15A | 1000Vdc | 10kA | Fast Acting | UL |
尺寸:
5 x 20mm, 6 x 25mm 6 x 32mm 10 x 35mm 10 x 38mm
電壓：1000Vdc/750Vdc/500Vdc/300Vdc/250Vdc/75Vdc
電流：0.25-50A
分斷能力: 高分斷
應用：
5G通信；鋰電池；儀器儀表；分布式儲能；轉(zhuǎn)換器；逆變器；DC電源。
